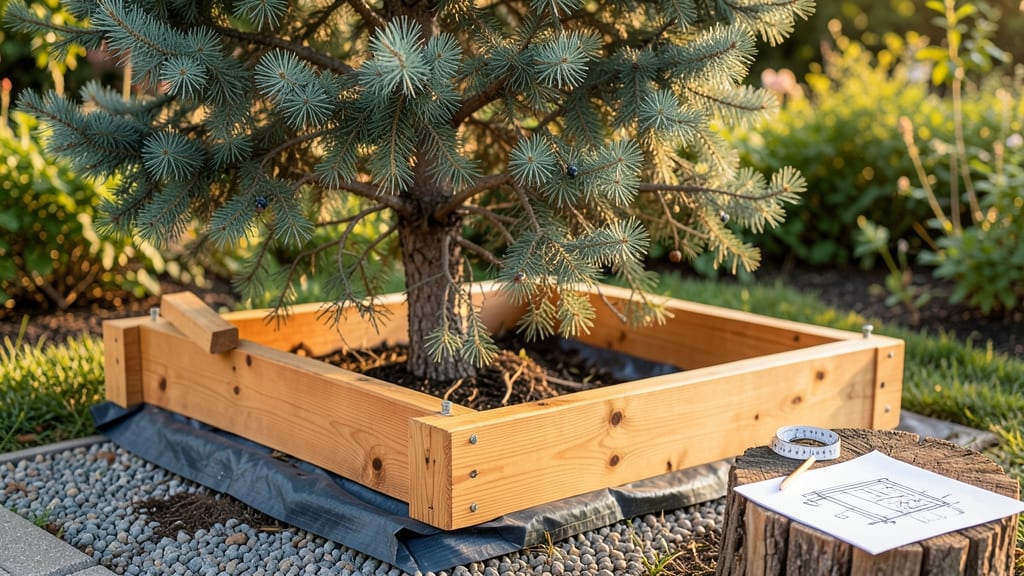

Cedar Raised Garden Bed Design: Rot-Resistant Frames With Precision Plant Spacing

Building a cedar raised garden bed means years of rot-free growing with perfect plant spacing from day one. 🌿 The natural oils in cedar keep pests away and frames lasting decades—no chemical treatments needed—while precise dimensions let you design for every plant’s needs without wasted space.

Start with 2x6 cedar boards for the frame (they’re thick enough to resist warping) and 1x6 slats for the bottom grid. My first bed used 4x8-foot dimensions—big enough for tomatoes, peppers, and herbs with clear pathways between rows.

The key is 3-inch spacing between slats for drainage while keeping weeds out. You’ll end up with a bed that looks like part of the landscape, not an afterthought.

The rich cedar scent lingers in warm weather, and the clean lines make it easy to customize—add a built-in bench, tiered sections for different crops, or even a trellis for climbing plants. This design works for small urban patios or sprawling backyard gardens.

The only limit is your imagination (and how much cedar you can carry!). Let’s get those boards stacked.

What you need

Step-by-step instructions for building a cedar raised garden bed

Here's how I build sturdy, rot-resistant cedar beds that last for years with perfect plant spacing.

Start by cutting your cedar boards to size—2 boards at 8 feet long for the long sides and 2 boards at 4 feet long for the short sides. Cedar's natural oils resist rot, so no chemical treatment is needed. I use 3-inch exterior deck screws to assemble the corners, pre-drilling holes to prevent splitting. Place the boards with the rough side facing out—this hides any imperfections and protects the wood better.

For extra stability, add 2 corner braces on each corner using 2.5-inch screws. This prevents the frame from bowing outward over time. Once assembled, lay the frame flat and check that all angles are square using a carpenter's square. If any corners feel loose, add an extra screw for reinforcement.

Choose a location with at least 6 hours of sunlight daily—most vegetables and herbs thrive here. Clear the area of grass, rocks, or weeds, then lay down a 2-inch layer of landscape fabric to prevent weeds from growing up through the bed. Place your frame where you want it, then use a 4-foot level to ensure it's perfectly level in all directions.

If the ground isn't level, adjust by adding or removing soil underneath the frame. For slopes, bury the lower side slightly deeper to maintain a flat planting surface. I like to mark the final position with stakes before filling to ensure accuracy—once the bed is full of soil, moving it becomes a challenge.

Start with a 2-inch layer of coarse gravel or small rocks at the bottom for drainage. This prevents waterlogging, which can rot roots and attract pests. Next, add a 4-inch layer of compost or well-aged manure to enrich the soil. Mix this thoroughly with the topsoil to create a nutrient-rich base.

Fill the remaining space with a blend of topsoil and compost in a 2:1 ratio, leaving about 1 inch below the rim for mulch. Avoid garden soil from your yard—it's often too dense and compacted. Water each layer lightly as you go to settle it without compacting. The final soil level should be 6 inches deep for most vegetables.

Use a tape measure and marking flags to divide the bed into planting zones based on plant height and sunlight needs. Tall plants like tomatoes or sunflowers go in the north side of the bed to avoid shading shorter plants. Mark rows with stakes or wooden labels—this keeps everything organized as the bed fills.

For precision spacing, I use a string and stakes to create straight rows. Most vegetables need 12-24 inches between plants, depending on the variety. Label each section with the plant name and spacing requirements—this saves time later when it's time to plant. A well-planned layout reduces competition for nutrients and makes harvesting easier.

Spread a 2-inch layer of mulch over the soil surface to retain moisture, suppress weeds, and regulate soil temperature. I prefer shredded cedar mulch because it matches the bed and adds extra protection against rot. Leave a 1-inch gap between the mulch and the cedar frame to prevent moisture buildup against the wood.

Install a drip irrigation system or soaker hose along the edges of the bed for even watering. Test the system before planting to ensure all areas receive water. Finally, add a weather-resistant label board to the side of the bed to track planting dates and care notes—this keeps everything organized for future seasons.

Tips & tricks for perfect cedar raised garden bed design

A few clever strategies that'll make your cedar raised garden bed last longer and grow better than ever.

Wood Selection: While cedar is naturally rot-resistant, choose boards that are at least 2 inches thick for the sides. Thicker wood handles seasonal temperature swings better and lasts longer. Look for boards with minimal knots—large knots can create weak points where moisture might collect. If you're on a budget, pressure-treated lumber can work for the bottom layer, but always use cedar for the sides and top edges where they'll be exposed to the elements.

Frame Stability: Don't skip those corner braces! I've seen many raised beds start to bow after just one season when they're missing this reinforcement. For extra security, especially in windy areas, consider adding a center support beam if your bed is wider than 4 feet. This simple addition prevents the frame from flexing under heavy soil loads. Always pre-drill screw holes to prevent splitting—cedar can be surprisingly brittle when you're forcing screws through.

Soil Layering: The 2:1 ratio of topsoil to compost is perfect, but here's the thing about that 6-inch depth—it's ideal for most vegetables, but root crops like carrots or potatoes need at least 12 inches. If you plan to grow these, either build taller beds or add extra soil layers. Also, don't compact your soil layers when watering—just let the water soak in naturally. Compacted soil creates air pockets that roots can't penetrate, stunting plant growth.

Plant Spacing: When marking those 12-24 inch spacing guidelines, consider the mature size of your plants. A tomato plant that starts at 18 inches might spread to 3 feet wide by harvest time. I like to use colored marking flags to indicate different plant families—this helps prevent cross-contamination when rotating crops next season. For herbs that spread like mint, consider giving them their own dedicated section with clear boundaries.

Frequently asked questions

1. How long will a cedar raised bed last before rot sets in?

A properly constructed cedar raised bed can last 10–20 years or longer, thanks to its natural rot resistance. To maximize lifespan, use weather-resistant cedar grades (Clear or Select), avoid direct soil contact (add a hardware cloth barrier), and keep it elevated (6–12 inches off the ground). Regularly inspect for cracks or moisture buildup—especially in joints—and seal with a non-toxic wood sealant every 2–3 years.

2. What’s the ideal size for a cedar raised bed to avoid rot or poor plant growth?

Aim for a 4’ x 8’ footprint (the most common size) with a depth of 10–12 inches. Larger beds (e.g., 8’ x 12’) risk uneven moisture distribution and rot in the center. For width, keep it under 4 feet to allow easy access from both sides. Pro tip: Add corner braces to prevent warping over time!

3. When is the best time to build a cedar raised bed—spring or fall?

Both work, but late summer/early fall is ideal! You’ll have time to season the wood (let it dry outdoors for 1–2 months) before winter, reducing the risk of warping. If building in spring, choose a dry, sunny day and pre-drill screws to prevent splitting. Avoid rainy seasons—cedar swells with moisture, making assembly tricky!

4. Are there cheaper alternatives to cedar for raised beds?

Yes! If cedar’s out of budget, consider:

• Redwood: Nearly as rot-resistant but pricier.
• Pressure-treated lumber (ACQ or CA): Budget-friendly but avoid arsenic-treated varieties (toxic to plants). Line the inside with plastic or cardboard as a barrier.
• Composite wood: Expensive upfront but lasts decades.
• Recycled plastic lumber: Lightweight and rot-proof, but less eco-friendly.

For a hybrid approach, use cedar for the top frame (where it matters most) and treated wood for the base.

5. How do I prevent pests (like termites or rodents) from damaging my cedar bed?

Cedar’s natural oils deter many pests, but take these steps for extra protection:

• Elevate the bed 6+ inches off the ground to discourage burrowing rodents.
• Apply borax or diatomaceous earth around the base (reapply after rain).
• Avoid wood mulch directly against the bed—use gravel or straw instead.
• Inspect annually for sawdust-like frass (termite sign) or gnaw marks.

For severe pest risks, opt for metal edging or hardware cloth wrapping on the exterior.

Wrapping up and next steps

Building a cedar raised garden bed is a game-changer for gardeners—it’s durable, rot-resistant, and designed for precision plant spacing that maximizes yields. Whether you’re a beginner or a seasoned green thumb, this project combines practicality with long-term beauty, giving your plants the perfect home while keeping maintenance low. 🌱

Now that you’ve got the know-how, it’s time to roll up your sleeves! Start sketching your design, gather your materials, and soon you’ll be harvesting fresh, thriving veggies in a bed that’s built to last. Happy gardening! 🛠️✨
